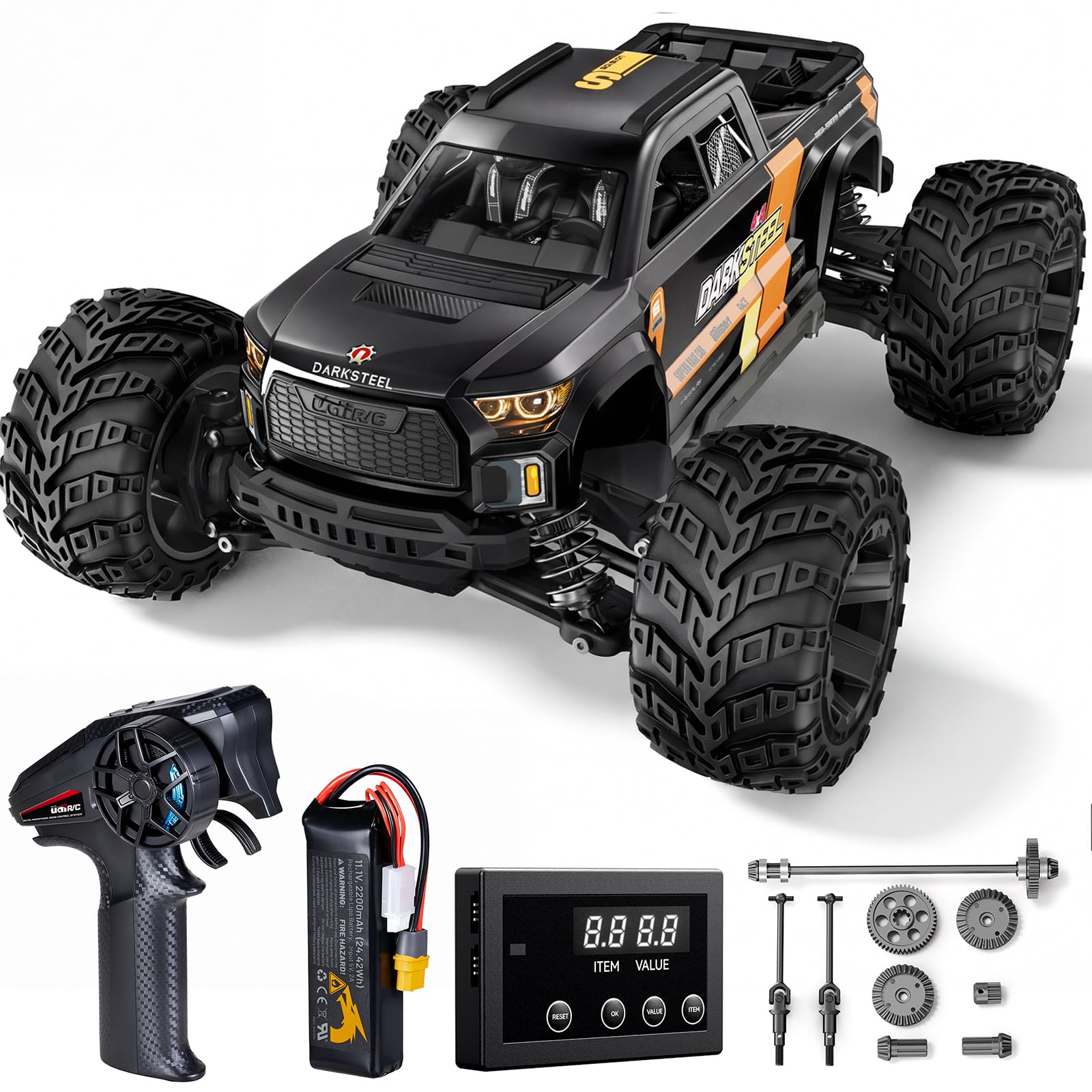

UDIRC DARKSTEEL UD1610S 1/16 4WD Brushless RTR RC Monster Truck
2S/3S Compatible4WD56+ MPH60A ESCBrushless RTRStanding backflip
Tax excluded. Shipping calculated at checkout
Coupon and allowance
Choose an offer and copy its discount code.
UDIRC DARKSTEEL UD1610S 1/16 4WD Brushless RTR RC Monster Truck
Sale price$199.99 USD
Regular price$268.00 USD
UDIRC RC Car ESC Programming Card
Digital Metal-Gear Servo
Max. Torque : >=.5KGF.CM
Rated Torque : >=KGF.CM
Input Voltage : 5V
60A Brushlesss ESC
Supported Batt : 2S-3S
Programmable : Yes
Auto Cutoff : Yes
Low-Voltage Protect : Yes
Shop Brushlesss ESC
2845-4700KV Brushless Motor
Working Voltage : 7.4V-11.1V
Supported Batt : 2S-3S
Motor Poles : 4pcs
Max. Mptor Speed : 60000 rpm
Shop Brushless Motor
Technical specifications
MODEL SPECS
MODEL Name:
UD1610S
Type:
Monster Truck
Top Speed:
90km/h
Skill Level:
Advanced
MODEL Scale:
1/16
MODEL Weight:
2.67 pounds (1.211 kg without batteries)
MODEL Length:
11.50 inches (292mm)
MODEL Width:
8.86 inches (225mm)
MODEL Track:
7.09 inches (180 mm)
MODEL Height:
5.00 inches(127mm)
MODEL Wheelbase:
7.09 inches (180 mm)
Center Ground Clearance:
0.95 inches (24mm)
Transmission:
Single-Speed
Differential Type:
Standard Differential
Gear Ratio (Internal):
11.4
Steering Servo:
17g 3-Wire Metal Gear Servo
Radio System:
2.4Ghz
Battery Compartment Specs:
110 mm X 34 mm X 25 mm
MOTOR SPECS
Name:
2845 Brushless Motor ¨C 4700KV
Motor Type:
4700Kv Sensorless Brushless
Weight:
126.5g
Length:
48mm
Diameter:
28mm
Shaft Size:
3.175mm
Connector Type:
3.5mm Bullet Connector
ESC SPECS
Name:
60A Brushless ESC
ESC Type:
Brushless
Case Size:
L40mm*W38.5mm*H21mm
Weight:
59g
Motor Connectors:
3.5mm Bullet Connector
Battery Connectors:
XT60
